Ford Flathead V8 Center Dump Headers, AHC
SKU: 910-13601H
DETAILS
Header Tube Type:Shorty
Finish:Ceramic Coated
Flange Style:Standard
Primary Tube Diameter:1-3/4"
Material Type:Steel
Color:Silve
Weld-Up:No
Exhaust Port Shape:Round
MFG. Part #:91013601H
Collector Diameter:2-1/2 Inch
Flange Thickness:.31"
Port He1.62"
Port Width:1.62"
Header Dimension A:6.10"
Header Dimension B:7.50"
Header Dimension C:18.00"
Hardware Included:Yes
Gasket(s) Included:Yes
Sold in Quantity:Pair
Collector Attachment Type:Stock flange
Collector Reducers Included:No
Info

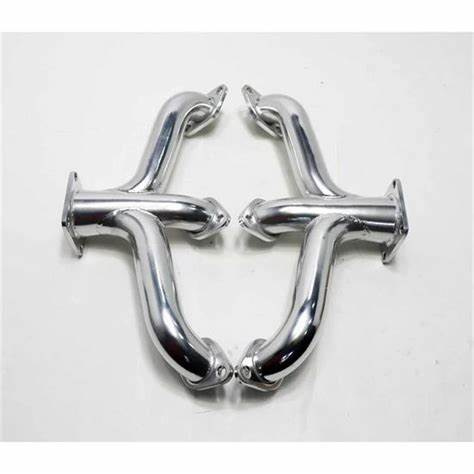

Improve the performance and exhaust note of your 1932-53 flathead Ford V8 with these affordable, high-quality tubular steel headers. They have a compact center-dump design. The center-dump design will not work on Ford cars with stock wishbones. These ceramic coated headers provide superior protection and durability.
- Block flange on these headers is 5/16" thick
- Collector Flange Outlet: 2-1/2"
- Not for use with stock wishbone front suspension

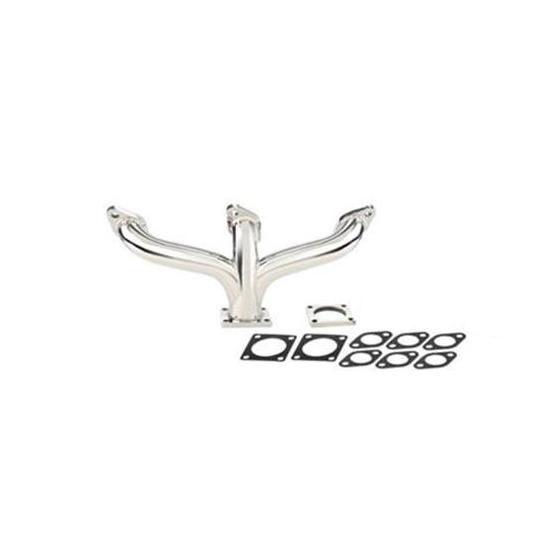

Includes block gaskets, collector gaskets and a pair of companion 2-1/2" flanges for beginning the exhaust system (companion flanges fit 2-1/2" pipe).
