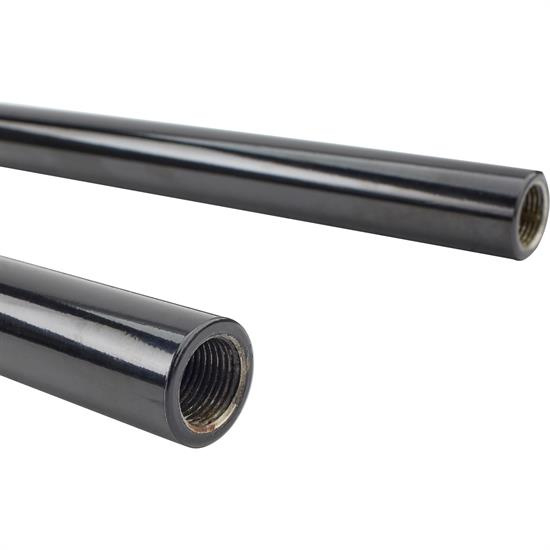

Front Hairpin Radius Rods, 27 Inch, Plain Steel
SKU: 916-35023
MFG. Part #:91635023
Overall Length:27.00"
Tube O.D.:.875"
Center to Center:4.50"
Thread Pitch:.625
Material Type:Steel
Finish:Painted
Sold in Quantity:Pair
Info
These front radius rods are ideal for smaller or full-fendered cars. Rugged, 7/8" O.D. steel tubing is threaded 5/8"-18 NF right hand at each end.
Designed to be used with batwings or axle brackets with a 5" center to center bolt hole spacing on front tube or I-beam axles only. Not to be used for rear suspensions. Before installing the heim joints or clevis ends, the actual measurement will be center to center 4-1/2". The angle of the tube will increase the measurement to 5" after installing the end hardware.
