3-Bolt Black Steel Steering Column-3/4 DD-28 Inch Length
SKU: 910-32311-28
DETAILS
Mount Type:Universal
Column Type:Straight
Shifter Location:Floor
Key Location:Dash
Overall Length:28"
Finish:Painted
Output Shaft Type:3/4" DD
Shaft Diameter:0.75"
Spline OD:1.24"
Spline Count:19
Tube O.D.:1.75"
Material Type:Steel
Collapsible:No
Gauge Thickness:.07
MFG. Part #:91032311-28
Sold in Quantity:Each
Info

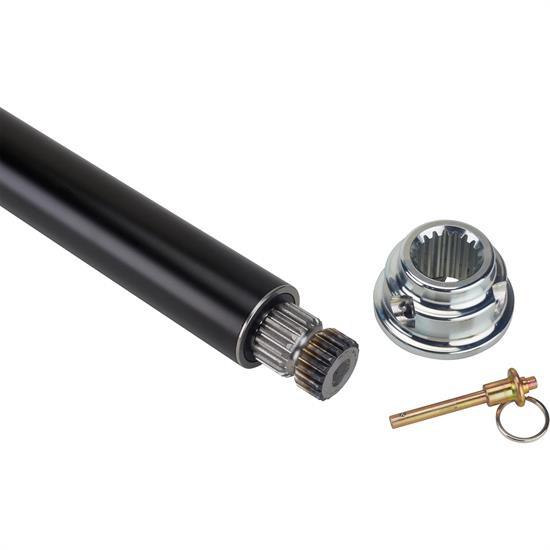

We now have an affordable steel version of our famous hot rod steering column. The 1-3/4" black painted column still has a quick release steel hub that accepts the common 3-bolt Grant steering wheel pattern and uses common 3/4" DD u-joints. 15 gauge mild steel.
Note: Length provided is measured from the end of the 3/4" DD shaft to the face of the steering wheel quick release hub and is therefore an overall end to end length measurement.
If you are considering an aftermarket 5-bolt steering wheel for your application, now available steering wheel adapter # 545-35078 or # 410-4004
Notes
- Measurement from end of DD shaft to lower face of column housing is 2-3/8".
