Electric Trunk Lift Kit
SKU: 910-69275
DETAILS
Stroke:13.00"
Hardware Included:Yes
Sold in Quantity:Each
Notes:Includes wiring harness. Max working capacity is 61 lbs.
Info

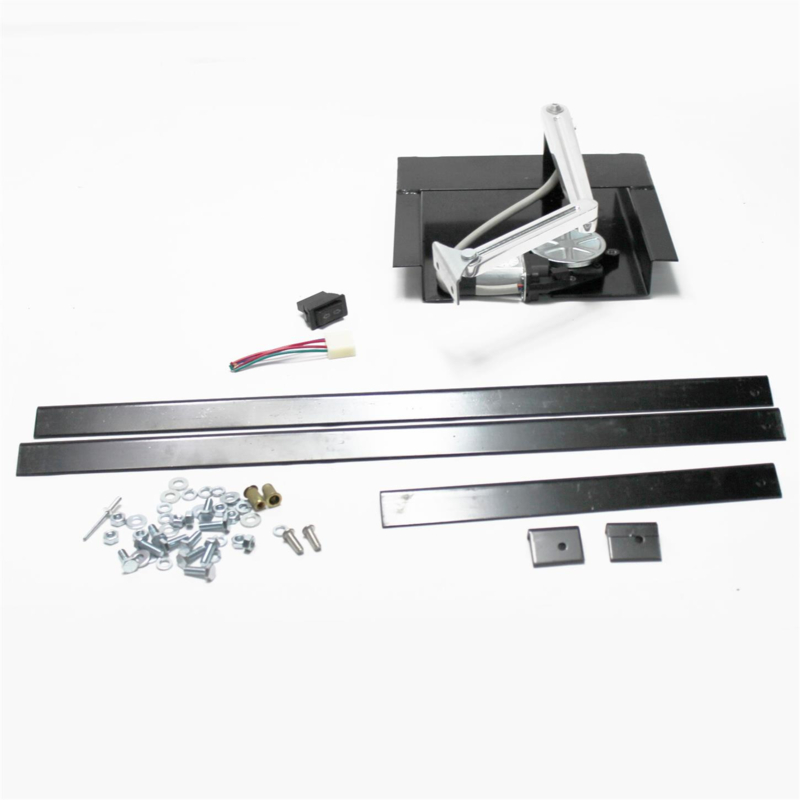

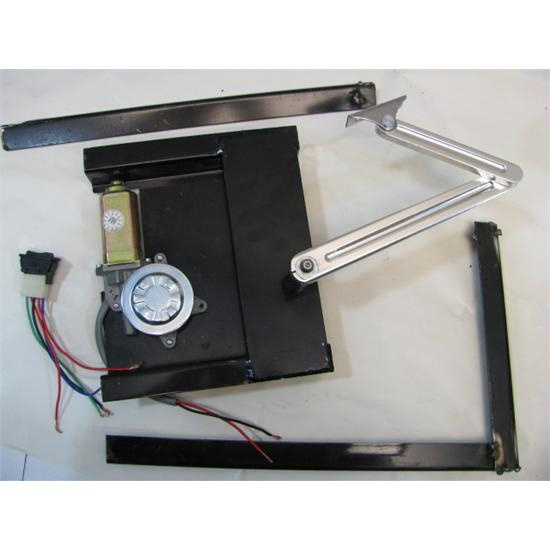

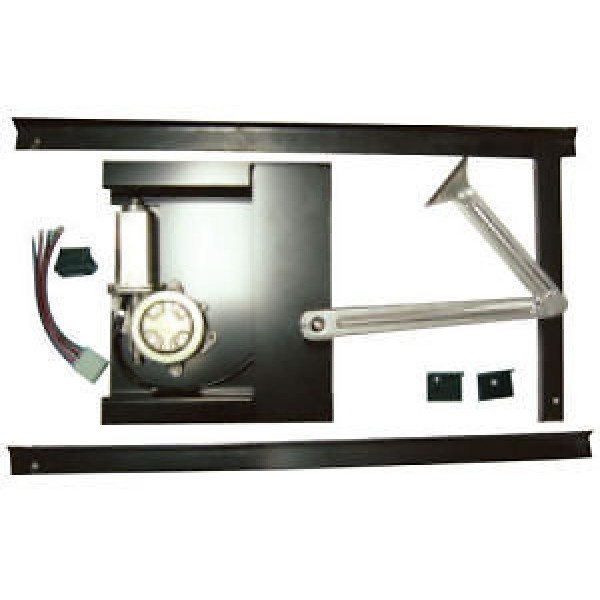

It's cool to open your trunk with just the flip of a switch! This kit includes the motor, gear box, mounting kit, switch and instructions. Must be used with existing trunk hinges.
- Primary arm is 8-1/2" long
- Secondary arm is 6" long center to center of pivot point
- Shaft with arm protrudes 2-1/2" from main body
- Total travel of the arm is 13" (measured at knee pivot)
- Overall dimensions with flange, but not including arm, are 10-1/2" x 9-1/16" x 1-3/4" thick
- The main body without flange for mounting is 8-1/2" x 9-1/16" x 1-3/4" thick
Mounting flange on arm is 1" from center to mounting surface
Max working capacity is approximately 61 pounds. Does not have a limit switch up or down.
